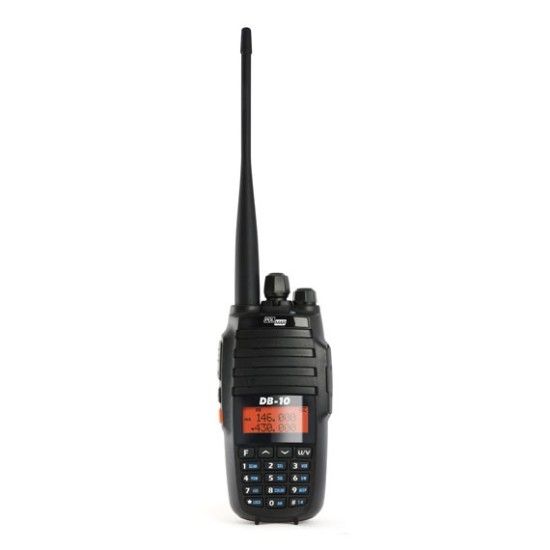

10W VHF/UHF POL MAR DB-10

10W VHF/UHF POL MAR DB-10

Specifications:

Dual Band, Dual standby. Two frequency display
Frequency range:
TX: VHF: 136-174MHz / 200-260MHz * / and 400 to 520 MHz Radio reception from 76-108MHz with 25 memories
Coordination step: 0.5 / 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 37.5 / 50 / 100KHz
Operating temperature: -20 ° C to + 55 ° C1750Hz toneCTCSS / DCS scanningDTMF encoder and decoder Remote Kill / Stun / Activate / Revive Memory channels: 2 x128
Operating voltage: 7.2 VDC
Rechargeable battery: Li-ion 3600 mAh Three screen color options
Dimensions: 132 x 59 x 36 mm
Weight: 254g (along with battery and antenna)

Output power: 10W VHF, 9W UHF / 5W Low

Broadcast configurations: 16K * F3E / 11K * F3ECTCSS / DCS

Deviation: 0.55KHz ± 0.15Khz 0.4KHz ± 0.1KHz
Power consumption: 2.8A (10W) 1.8A (5W) RF

Sensitivity: -122dBm (12db SINAD)

Audio Power:> 0.5WAudio Distortion <10% Blocking

* 85dB Intermediation

Sensitivity 8-12mV Intermediation Distortion <5% Intermediation

* 60dB * 55dB Selectivity

* 65dB * 60dBSpurious Rejection

* 65dB Spurious Radiation <7μW

Receiver

Download Sensitivity: 122dBm (12dB SINAD)
Acoustic Power:> 0.5W

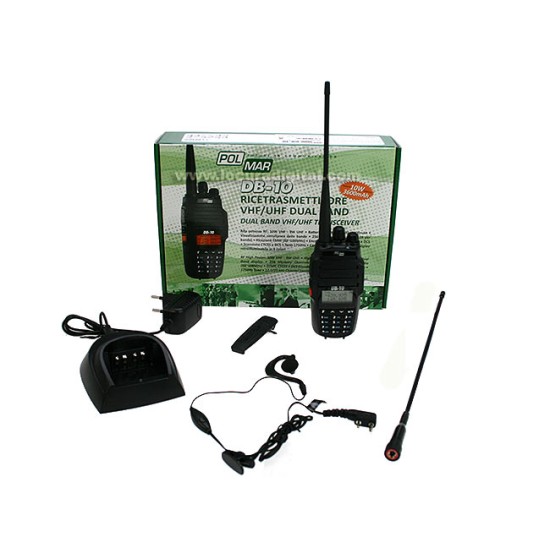

Package Contents:

1 x Polmar DB-10

1 x Normal antenna 14 cm

1 x High gain antenna 36 cm

1 x Micro-headset

1 x 7.2V / 3600 mAh battery

1 x Charger

1 x Charging Base

1 x Belt clip

1 x Instructions for use in Greek and English

ΓΙΑ ΝΑ ΚΑΤΕΒΑΣΕΤΕ ΤΟ MANUAL ΠΑΤΗΣΤΕΕΔΩ
